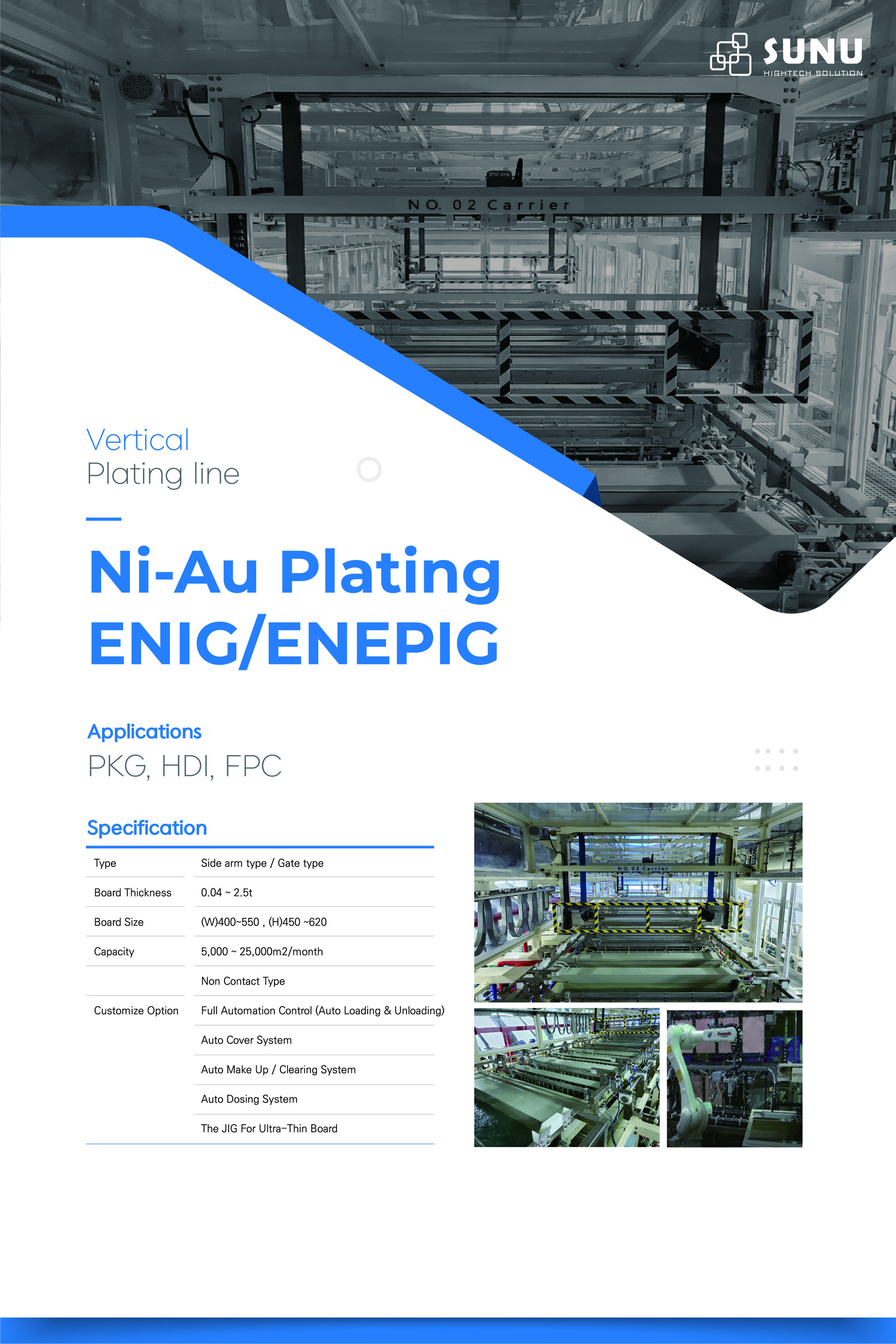

ENIG/ENEPIG Line
Featue
- Full Automation Control(Auto Loading & Unloading)
- Type : Side Arm / Gate Type
- Customization Available
a. Board Thickness : 0.1 ~ 2.5 t
b. Board Size : W400 ~ 550, H450 ~ 620
c. Capa : 5,000 ~ 15,000 m2/month
d. Lay Out
- Auto Chemical Analysis Function System
- Auto Make Up/Cleaning
- Automation Basket : Clamp + Cover
- scheduler Process Program
Customize Options
- Material : Ti/SUS/PTFE
- Basket : 10~20 Board / 1 Basket
- Auto Make Up / Cleaning
- Particle Control System
Applications
HDI/MLB/PKG/BGA
Process
Load - Start Dip - Rinse - Cleaner - H/Rinse - Rinse - S/E - Rinse - Pre Dip - Activator -Rinse
- Post Dip - Rinse - Ni - Rinse - Pd - Rinse - Au - Rinse - Unload
