PCB Plating
선우하이테크의 기술을 집약한 PCB 표면처리설비입니다.
PCB Plating
선우하이테크의 기술을 집약한 PCB 표면처리설비입니다.

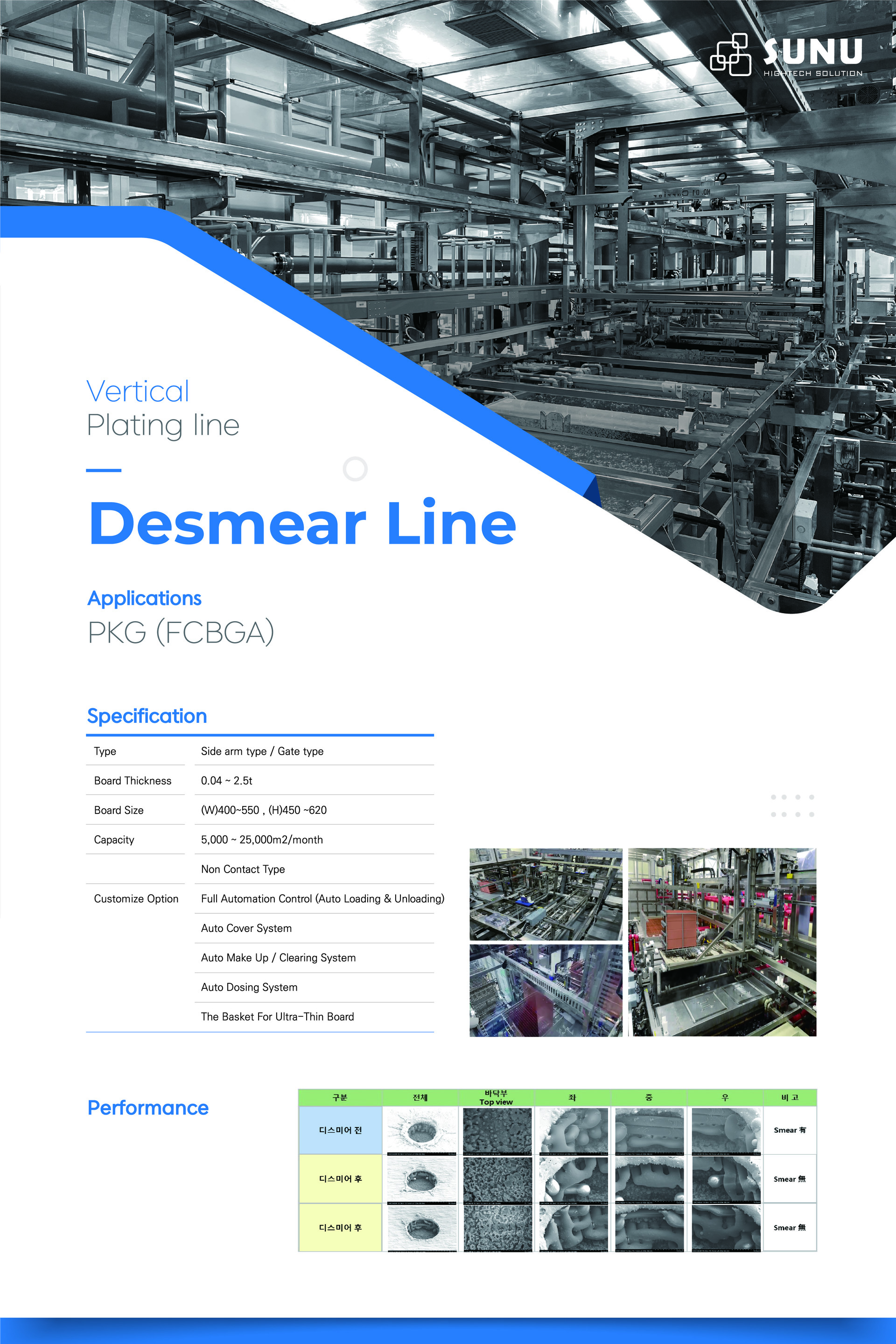

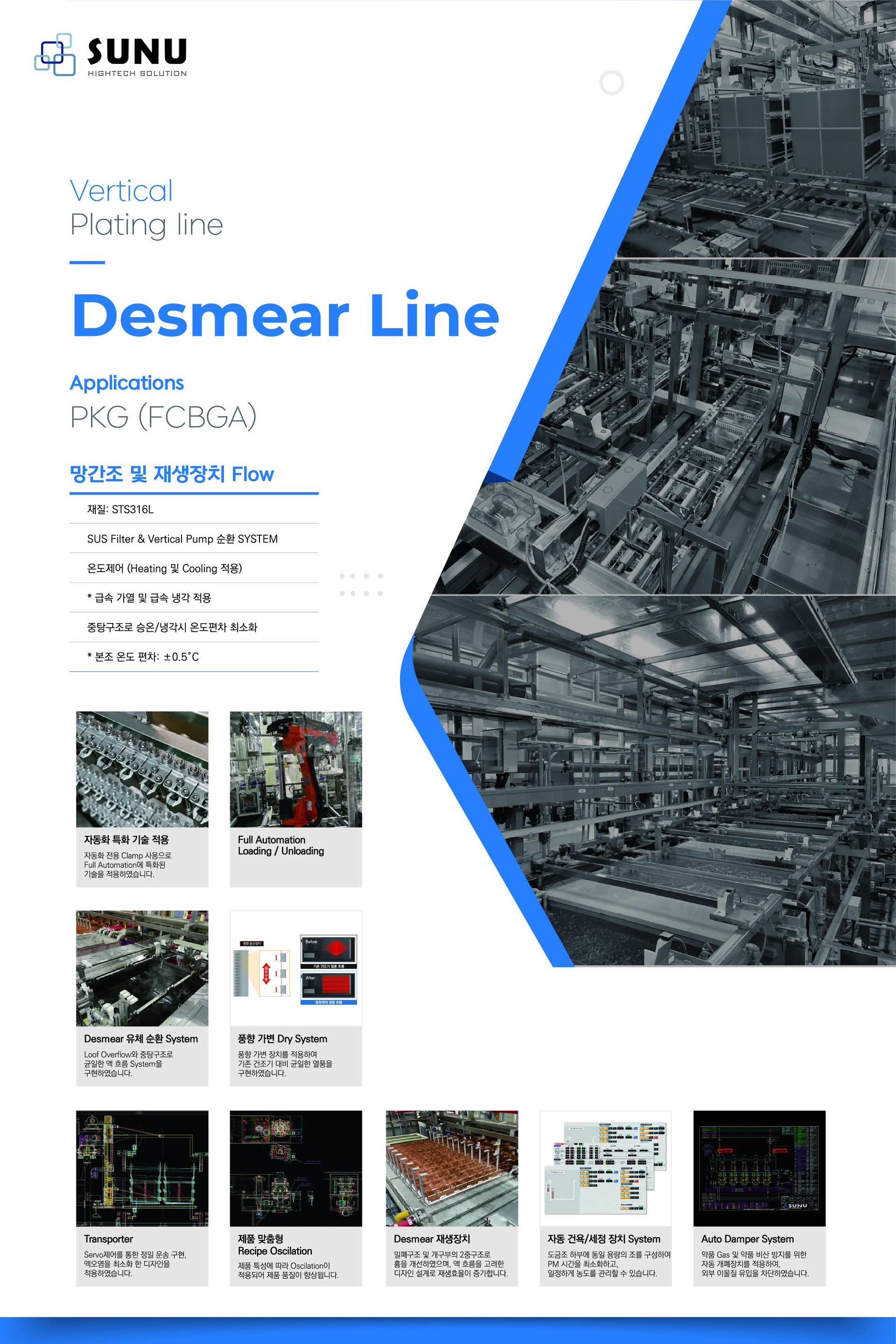

Desmear Line
Featue
- Full Automation Control(Auto Loading & Unloading)
- Type : Side Arm / Gate Type
- Customization Available
a. Board Thickness : 0.1 ~ 2.5 t
b. Board Size : W400 ~ 550, H450 ~ 620
c. Capa : 5,000 ~ 25,000 m2/month
d. Lay Out
- Auto Make Up/Cleaning
- Auto Chemical Analysis Function System
Customize Options
- Material : Ti/SUS/PTFE
- Basket : 10~20 Board / 1 Basket
- Auto Cover System
- Auto Make Up / Cleaning
- Particle Control System
Applications
PKG/BGA
Process
Load - Sweller - H/Rinse - Per-min Etch - H/Rinse - Rinse - U/S Rinse - Rinse -Soft Etch - Rinse - Dry - Unload
