PCB Plating
선우하이테크의 기술을 집약한 PCB 표면처리설비입니다.
PCB Plating
선우하이테크의 기술을 집약한 PCB 표면처리설비입니다.

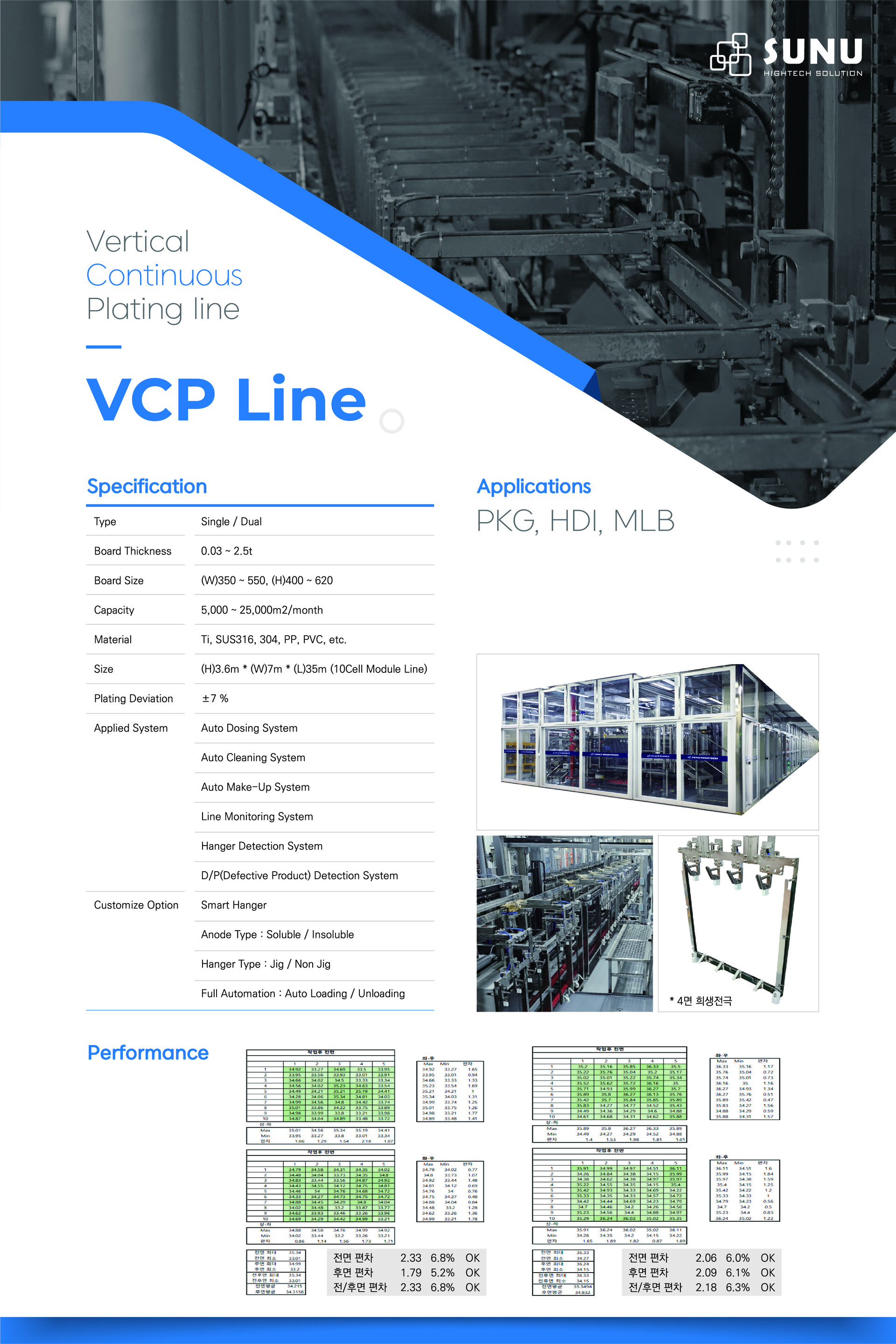

DC VCP Line
Featue
- Full Automation Control(Auto Loading & Unloading)
- Type : Single Plating / Dual Plating
- Customization Available
a. Board Thickness : 0.07 ~ 2.5 t
b. Board Size : W350 ~ 550, H400 ~ 620
c. Capa : 5,000 ~ 25,000 m2/month
d. Layout
- High Performance : Plating Deviation ±7% Under
Customize Options
- Capacity : Pilot/Single/Dual Type
- Material : Ti/SUS/PTFE
- Hanger : Jig / Non Jig
- Smart Hanger : Hanger Monitoring System
- Anode Shield : Auto / Manual
- Anode : Insoluble / Soluble
Applications
HDI/MLB/PKG/BGA
Process
Load - Cleaner - H/Rinse - Pre Dip - CuSo4 - Rinse - Unload - Jig strip
